Oak Fire Extinguisher Cabinets



Surface mount fire extinguisher cabinet allows you to hide an unsightly extinguisher in plain sight for safety. These high quality cabinets feature solid construction. Contemporary engraving or acrylic door panel compliments any decor. These cabinets easily accommodates up to a 5 or10 lb. fire extinguisher. Heavy duty mounting hardware is included.



Wall Mounting Instructions



FEC10/11 Submittal Sheet

FEC20/21 Submittal Sheet





FEC10 specs

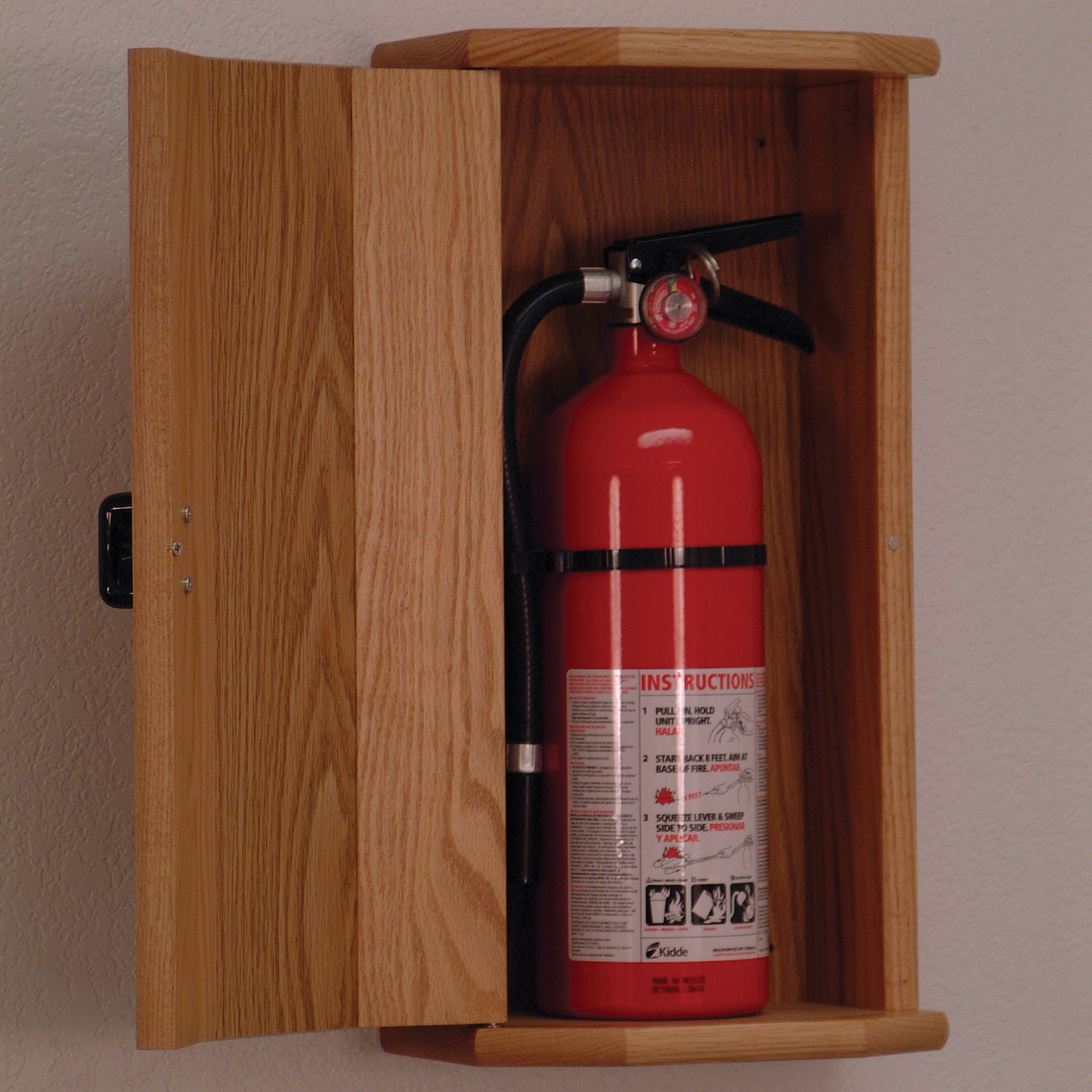

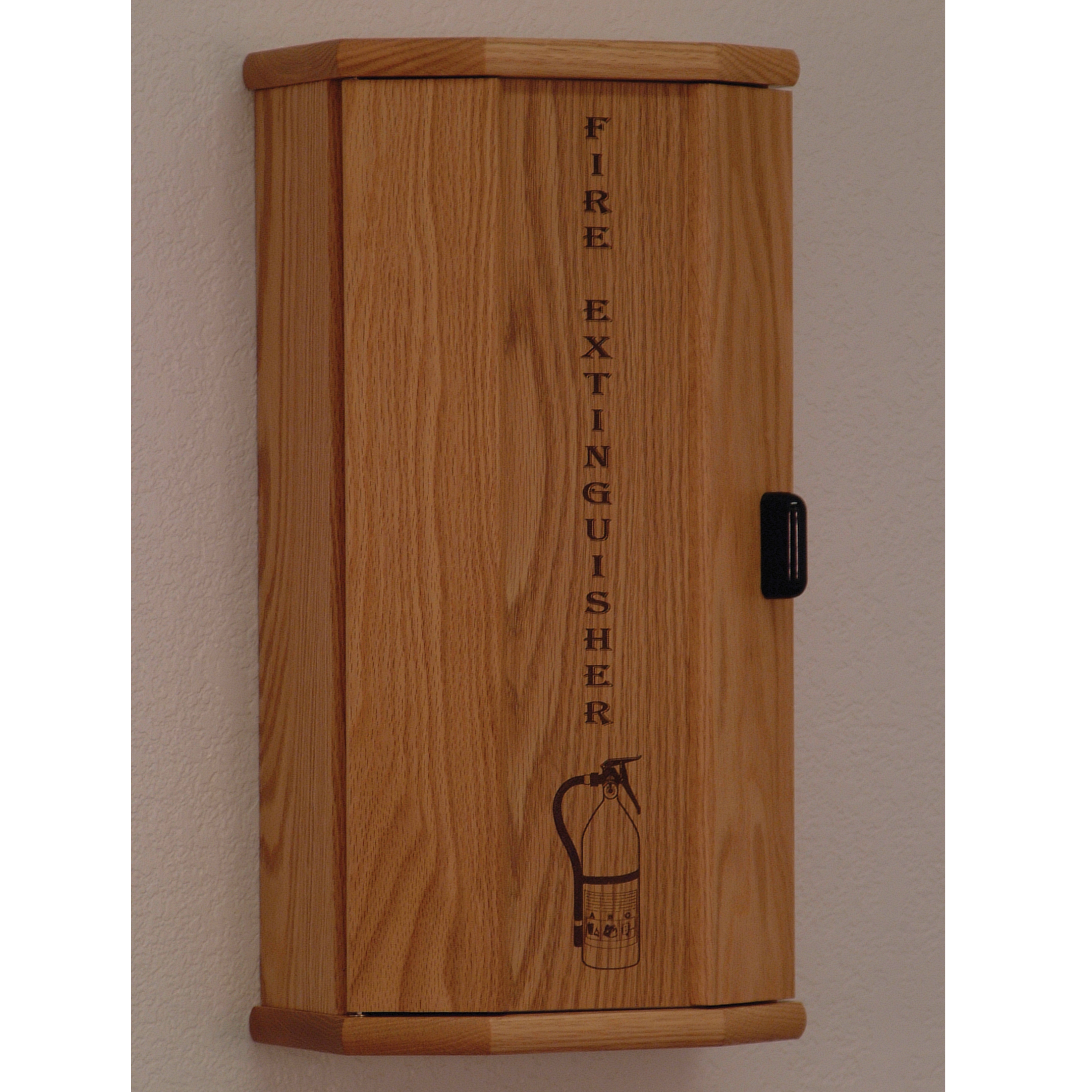

5 lb. Fire Extinguisher Cabinet with engraved front panel



FEC11 specs

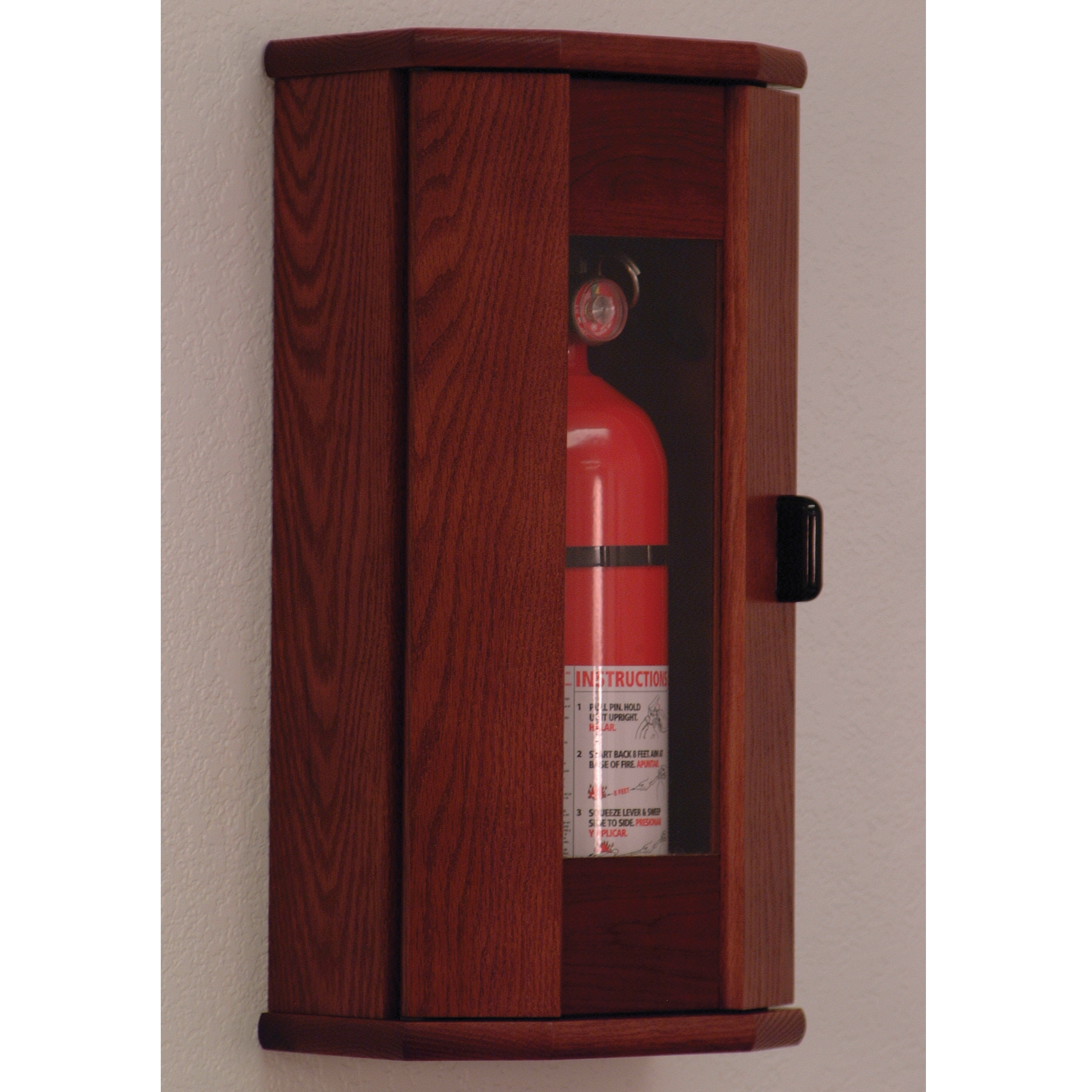

5 lb. Fire Extinguisher Cabinet with acrylic front panel



FEC20 specs

10 lb. Fire Extinguisher Cabinet with engraved front panel



FEC21 specs

10 lb. Fire Extinguisher Cabinet with acrylic front panel



All Fire Extinguisher Cabinets are available in the following finish colors:

Black (BK)



Light Oak (LO)



Medium Oak (MO)



Mahogany (MH)

   Colors may vary due to differences in monitors.



Model Specifications



FEC10/11   Width Height Depth Weight
Cabinet  10" 19 1/2" 6 1/4" 8 lbs.
Inside Dimensions 8" 18" 5 1/4"
Shipping Carton Length Width Depth Weight Dim Weight Freight Class Cubic Feet
  22" 11" 7" 11 lbs. 11 lbs. 85 1

FEC20/21   Width Height Depth Weight
Cabinet  10" 25 3/4" 6 1/4" 10 lbs.
Inside Dimensions 8" 24 1/4" 5 1/4"
  Length Width Depth Weight Dim Weight Freight Class Cubic Feet
Shipping Carton 28" 11" 7" 13 lbs. 13 lbs. 92.5 1.1
